Rail Mounted

CS-100H Horizontal Weaving Welder

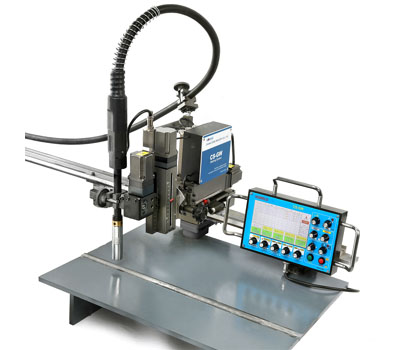

CS-GW LCD Automatic Multi-Layers Welder

Storable the starting position and angle value of the torch for each multi-layer PASS.
[Semi-automatic mode] Torch is automatically moved to the memorized starting position with the angle value of the next work PASS when ongoing PASS welding is completed.
[Manual mode] The origin return button is pressed, and torch is moved to the memorized starting position with angle value of the next work PASS.
Up to 15 PASS, working condition values can be set and saved.
Mechanical downsizing and simplification of equipment enables …

The welder is compact and lightweight, so it can be moved easily and conveniently.

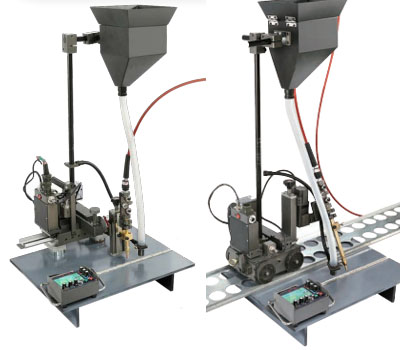

Productivity can be improved and welding cost can be reduced in flat position SAW welding work.
A weaving device is installed so that even thick base materials can be welded, and the weaving width can be adjusted according to the thickness.
There is a left and right stop function to prevent insufficient penetration and undercut during weaving welding.
It is possible to do precise control digitally such as running speed, …

The welder is compact and lightweight, so it can be moved easily and conveniently.
Productivity can be improved and welding cost can be reduced in flat position SAW welding work.
A weaving device is installed so that even thick base materials can be welded, and the weaving width can be adjusted according to the thickness.
There is a left and right stop function to prevent insufficient penetration and undercut during weaving welding.
It is possible to do precise control digitally such as running speed, …

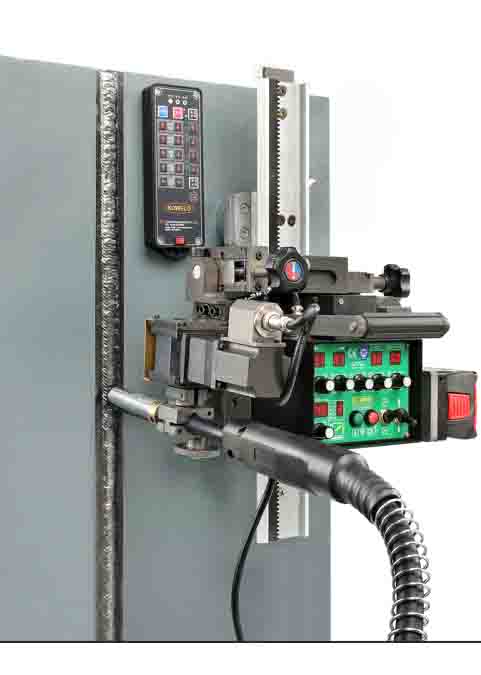

It is a weaving welder of multi-positions driving on the aluminum rigid rail, and it can be easily controlled by the panel controller and the remote controller.
The stop sensors of its both sides stop the welder automatically when a welding job is completed.
Controlling the weaving width, the desired leg length can be acquired in 1 time travelling.
It drives at a constant speed with the minimized gear backlash. Thus the high welding quality and the long life span of the welder is acquired.

The position of the rail can be easily readjusted by the on-off magswitches.
It drives at a constant speed with the minimized gear backlash. Thus the high welding quality and the long life span of the welder is acquired.
The crater filling function provides excellent welding quality at the beginning and end of welding.
The travel speed in Cm/Min or Inch/Min programmable in acc with the user manual.

It is a horizontal weaving welder of multi-positions driving on the aluminum rigid rail, and it can be easily controlled by the panel controller and the remote controller.
The stop sensors of its both sides stop the welder automatically when a welding job is completed.
Controlling the weaving width, the desired leg length can be acquired in 1 time travelling.
It drives at a constant speed with the minimized gear backlash. Thus the high welding quality and the long life span of the welder is acquired.
