Rail Type

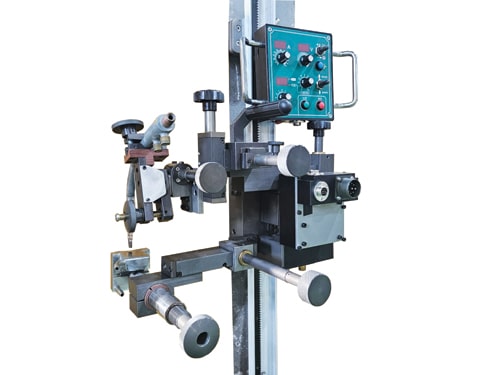

  1. It is a mini ultra-light EGW Welder.
  2. With Vertical-Up 1pass welding (30T or less), it can make welding bead shapes on the back (using ceramic backing material) and the front (using copper shoe).
  3. It reads the value of current between the welding gap in & out, and controlling the arc length by the difference compared to the input value it forms automatically a melting pool.
  4. It uses the BLDC (driving, weaving) motors, so it has good durability and excellent ability to respond to driving speed depending on …

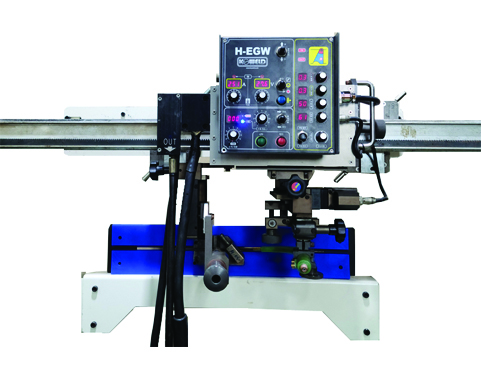

  1. It is a horizontal, butt weaving welder of EGW (Electric Gas Welding), and FCAW (Flux Cored Arc Welding).
  2. Driving on the rail, it follows the welding points and makes a high-quality welding bead shape with a weaving device of weaving patterns, and a copper shoe suitable for horizontal welding.
  3. It reads the value of current between the welding gap in & out, and controlling the arc length by the difference compared to the input value it forms automatically a melting pool.
  4. It has a feedback control device …

  1. It is a vertical-up, butt weaving welder of Electric Gas Welding, and the welding thickness of 25 ~ 50mm is acquired with 1 pass.
  2. It is applicable for ship blocks or large storage tanks.
  3. The bead is formed while the machine goes up with the copper shoe, and it is cooled by fresh water circulation.
  4. The position of the rail can be easily readjusted by the on-off magswitches.
  5. It drives at a constant speed with the minimized gear backlash. Thus the high welding quality …

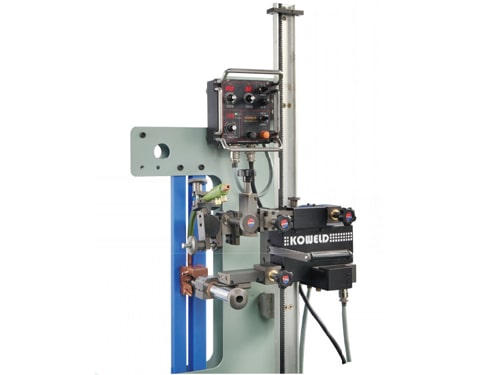

  1. Butt welder by Electric Gas Welding for vertical-up direction with thickness of 10-25mm by one pass where no weaver needs.
  2. Applicable to ship's blocks and larger storage tanks.
  3. Stick-out and travelling speeds in automation by means of detecting various currents providing from melt metal height in the bath.
  4. The bead is performed while the machine goes up with copper shoe and cooling by fresh water circulation.
  5. The control of the machine is possible both from the control panel and wired control panel.
