CS-B201
CS-B201 Battery Powered Butt & Fillet Multipurpose Welder delivers reliable performance and efficiency for various welding tasks. Equipped with a long-lasting battery, precise welding capabilities, and user-friendly design, it enhances productivity.
Download Catalog
Detail Info
- Litium-ion Battery 14.4vdc 4.0Ah, avr 16hours use.

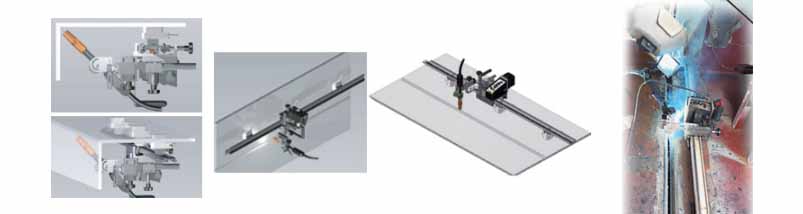

- It is a butt & fillet welder of multi-positions driving on the aluminum rigid rail.
- The position of the rail can be easily readjusted by the on-off magswitches.
- It drives at a constant speed with the minimized gear backlash. Thus the high welding quality and the long life span of the welder is acquired.
- The crater filling function provides excellent welding quality at the beginning and end of welding.
- The travel speed in Cm/Min or Inch/Min programmable in acc with the user manual.
DIVISION | CS-201 | CS-B201 | ||
---|---|---|---|---|
General | AC Input power | AC100V-240V 50/60Hz | – | |
DC Input Power(Option) | AC 48V | DC18-72V(Option) | BOSH BATTERY 18V 4.0Ah | |
Dimensions | 237(W)X391(L)~423(L)X239(H) | 422(W) X 279(L) X 239(H) | ||
Weight | 6.5Kg | 6.7Kg | ||
Body | Driving Method | RACK-PINION DRIVEN | ||
Traveling Speed | 0~98 cm/min ±5% | |||
Traveling Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | |||
Torch | Up/Down angle | 0~45mm ±10 | ||
Front/back Distance | 0~32mm | |||
Up/Down Distance | 0~32mm | |||
Running Angle | ±5° | |||
Arm Front/Back Distance | 0~120mm | |||
Rail | Fixing | Magnet On/Off type | ||
Material / Size | AL / 1.5M / 5.4Kg |
Welding Position | Fillet | Groove | PIPE |
2F, 4F | 1G, 2G | – |
