CS-71B Fillet Stitch and Continuous Dual Side Welder, Lightweight
Home » Products » Fillet Carriage » Two Torch Fillet » CS-71B Fillet Stitch and Continuous Dual Side Welder, Lightweight
Fillet Carriage
2 Torch Fillet
CS-71

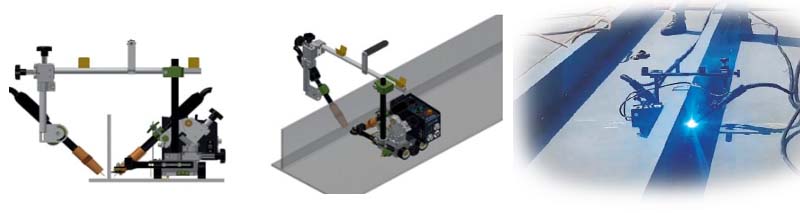

CS-71B Fillet Stitch and Continuous Dual Side Welder, Lightweight welds both sides with two torches, saving time and cost. Set it to intermittent or continuous mode for fillet welding, and enjoy convenient use and mobility thanks to its minimized size and weight.
Download Catalog
Detail Info
- The dual side welding with 2 torches can save time and cost.
- It drives at a constant speed with the minimized gear backlash. Thus the high welding quality and the long life span of the welder is acquired.
- It can climb up to 50° of inclination, and the stop sensors of its both sides stop the welder automatically when a welding job is completed.
- The crater filling function provides excellent welding quality at the beginning and end of welding.
- It is small and light, so it can be conveniently used and easily moved.
- Stitch, Continuous welds and the travel speeds in Cm/Min or Inch/Min programmable in acc with the User Manual.
DIVISION | CS-71B | Remarks | ||
---|---|---|---|---|
General | AC Input power | AC100V~240V 50/60Hz | – | |
DC Input Power(Option) | AC 48V | DC18-72V(Option) | ||
Dimensions | 576(W) X 236(L) X 413(H) | – | ||
Weight | 8Kg | – | ||
Body | Driving Method | 4 WHEELS DRIVEN | ||
Traveling Speed | 0~98 cm/min | |||
Traveling Motor | DC 24V, 12W, 5000RPM | BLDC MOTOR | ||
Traction Power | 20Kg (angle of inclination 50°) | |||
Magnetic Power | 25Kg | |||
Torch | Up/Down Angle | 45° ±10° | ||
Front/back Distance | 0~23mm | |||
Running Angle | ±5° | |||
Extension Arm Torch |
Up/Down Angle | 45° ±10° | ||
Front / Back Distance | 0~23mm | |||
Up /Down Distance | 0~23mm | |||
Running Angle | ±5° | |||
Arm Up/Down Distance | 0~65mm | |||
Torch Clamp Slide up/Down Distance | ±80mm |
Welding Position | Fillet | Groove | PIPE |
2F | – | – |
