CS-471 Fillet Multi-Pass Welder
Home » Products » Fillet Carriage » Special Fillet »
Fillet Carriage
Special Fillet
CS-471

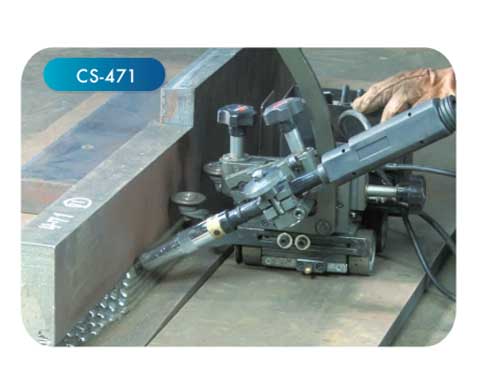

CS-471 Fillet Multi-Pass Welder is a specialized carriage for multi-layer welding, compatible with both manual and automatic torches. Torch adjustment from 0 to 75 degrees according to the layering welding angle is easily achievable with two slides.
Download Catalog
Detail Info
- It is specialized in fillet multi-pass welding. Adjusting the angle slide of worm gears and the Y slide of forward and backward movement, the position of the torch can be set.
- Using a single machine, both of 2 welding (upper/lower) parts can be welded.
- The multi-pass welding is done when a bigger weld throat is needed.
- It can climb up to 75° of inclination, and the stop sensors of its both sides stop the welder automatically when a welding job is completed.
- The crater filling function provides excellent welding quality at the beginning and end of welding.
- Using magnet release handle, it can be easily mounted and dismounted.
- The travel speed in Cm/Min or Inch/Min programmable in acc with the User Manual.
| DIVISION | CS-471 | CS-B471 | ||
|---|---|---|---|---|
| General | AC Input power | AC100V~240V 50/60Hz | – | |
| DC Input Power(Option) | AC 48V | DC18-72V(Option) | BOSH BATTERY 18V 4.0Ah | |
| Dimensions | 274(W) X 325(L) X 281(H) | 353(W) X 315(L) X 281(H) | ||
| Weight | 6.2Kg | 6.8Kg | ||
| Body | Driving Method | 4 WHEELS DRIVEN | ||
| Traveling Speed | 0~98 cm/min | |||
| Traveling Motor | DC 24V, 12W, 5000RPM BLDC MOTOR | |||
| Traction Power | 25Kg (angle of inclination 75°) | |||
| Magnetic Power | 30Kg | |||
| Torch | Up/Down Angle | 0° ~ ±10° | ||
| Front/back Distance | 0~23mm | |||
| Running Angle | ±5° | |||
| Welding Position | Fillet | Groove | PIPE |
| 1F, 2F | – | – |
